TP1046 I
TP1046 I-50 with Amps
TP1046-100-A with Amps
SP1046-4 Single Pair Tester for the Type 71 block

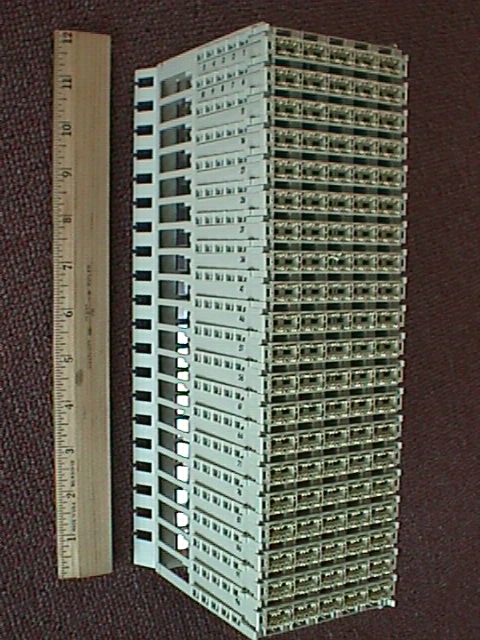

Siemens Type 71

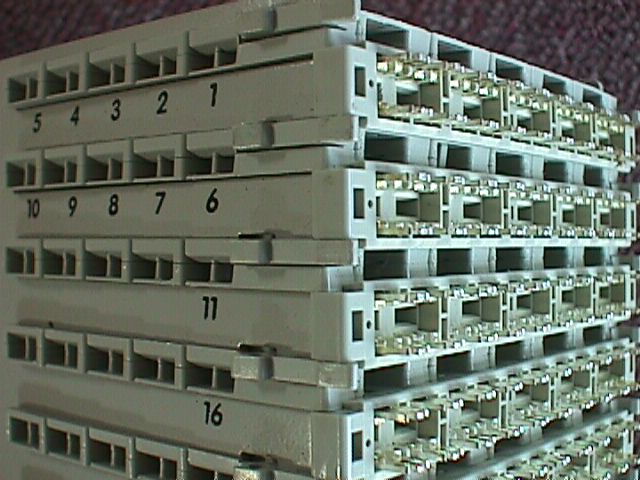

Siemens Type 71 Close-up
The TP 1046I (Internal Friction Fit) Front Tap Shoe is designed for use with the Siemens type 71 connector block, this shoe is also designed for use with the Ericsson RX/5F type connector blocks.
The TP 1046I Front Tap Shoe is also designed for use with the Ericsson RX/5F type connector blocks.
Can be ordered in 50 pair or 100 pair configurations.
*Please note: due to the obsolescence of Cinch Jones connectors, all our Front Tap Shoes are now manufactured with male bail lock AMP connectors.
See details/descriptions at http://www.customassemblyinc.com/testequipment/
TP 1046I consists of the following components:
- 100 or 200 sharp, gold-plated contact pins.
- Five or Ten individual blocks; ten pair each block.
- One or Two 15 foot, 50 pair 28 gauge stranded (7/38) tinned wire cables. Soldered terminations.
- Cable strain relief provided.
- Two or Four 25 pair female Cinch Jones connectors or Amp Connectors.
